Work out the base wrap and the wrap-around cover sleeve (Front/Top/Back panels) open sizes for a magnetic, hinged, book-style rigid box from your box's finished dimensions.
This tools section is actively evolving — always confirm figures with our team before production.
Box Dimensions
Which edge stays constant. The cover is the base's own cross-section perimeter — Front/Back = Base Depth, Top/Bottom = the other edge, computed automatically.
Saved on this browser only. Log in to sync across devices
Finish & Hardware
Interior Insert (Optional)
Board, Paper & Quantity
Only affects the Base and Cover wrap sheets — the inner liner always stays paper.
Each piece picks its own best fit between the common 64×90 / 70×100 stock — 72×102 or any other uncommon size is used only when picked manually or entered as Custom.
Inner size
22L × 16W × 5H cm
Sleeve: along width
Base wrap
36.40W × 30.40H cm
open size
Cover wrap
60.00W × 20.40H cm
one piece
Order
1,000 boxes
4 magnets per box
What 1,000 boxes need — the net quantity, with the order including wastage beside it (change the allowances below).
Use the leftover paper (optional)
Off by default — a liner or an insert is often a different paper or board. Turn on only when it is the same stock as the sheet it would be cut from.
Loading shop allowances…
Enter the wastage your supplier and press need — the list above updates at once.
Rigid board
Base and cover board, cut from board sheets
Printed wrap & liner paper
Printed on a press — make-ready sheets apply
Want a quotation for this box?
Your specification is sent along with your request.
Artwork template for your designer
A true-size (1:1) PDF of the cover wrap and the base wrap (and the liners that are on): cut edge, 3 mm bleed, turn-in line, where each board panel sits, the hinge gaps and a 5 mm safe area.
Sizes & dielines
Base — Board
Cross-template — Bottom in the centre, walls fold up from each edge
| Bottom | 22.00W × 16.00H cm |
| Long Wall ×2 | 22.00W × 5.00H cm |
| Short Wall ×2 | 16.00W × 5.00H cm |
| Combined (one sheet) | 32.00W × 26.00H cm |
Base Wrap Sheet
36.40 × 30.40 cm
width × height
Base Outer Footprint
22.40 × 16.40 cm
Base Inner Liner
30.00 × 24.00 cm
optional — not included
Magnets
4 × 1cm
hardware, not sheet-cut
Cover — Board (4 pieces)
One continuous wrap — the gaps between panels are the real hinges (dashed = turn-in margin)
| Front | 16.40W × 5.00H cm |
| Top | 16.40W × 22.40H cm |
| Back | 16.40W × 5.00H cm |
| Bottom | 16.40W × 22.40H cm |
| Combined (one sheet) | 54.80W × 16.40H cm |
Cover Wrap Sheet (one piece)
60.00 × 20.40 cm
width × height
Cover Inner Liner
54.00 × 14.40 cm
included
Doesn't include the fitted interior insert. Construction allowances are estimates — always confirm with a physical sample before final production.
3D Luxury Box Visual Showcase
22L × 16W × 5H cm

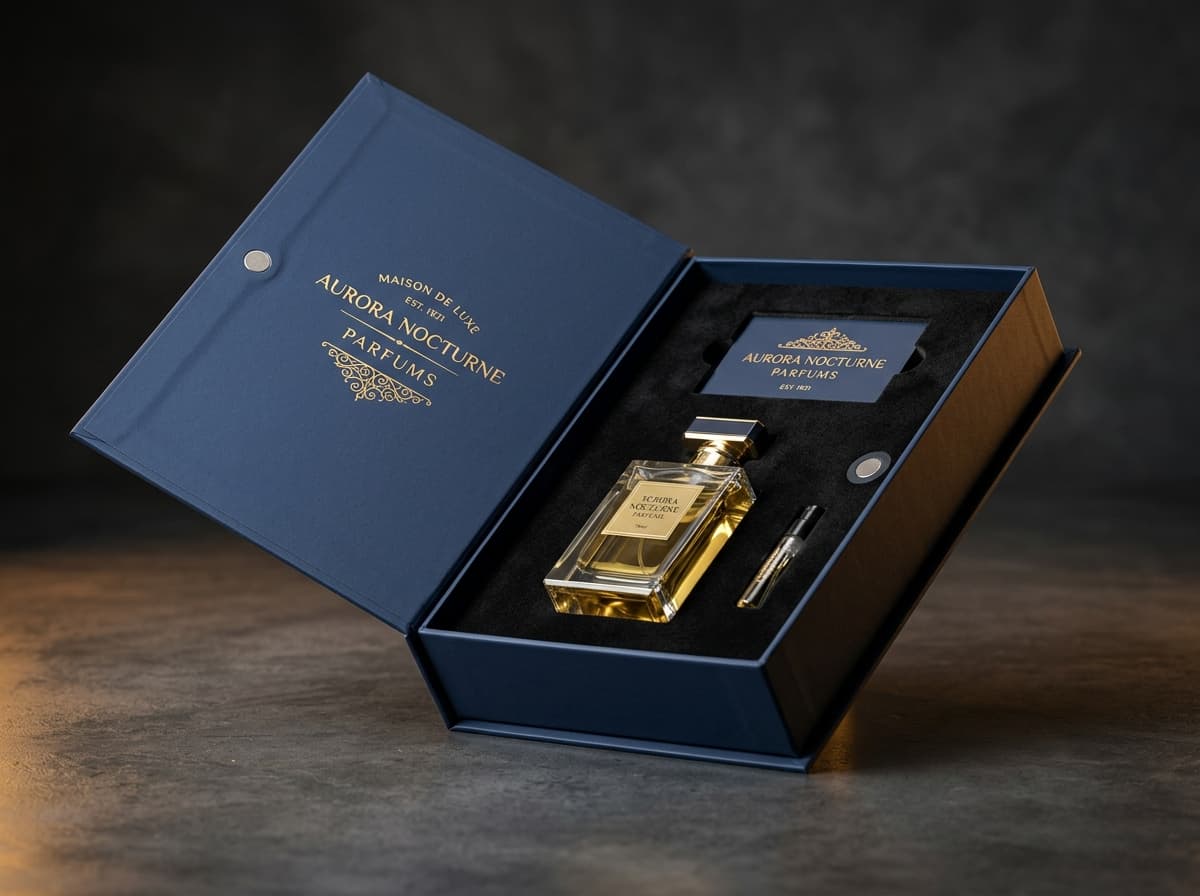

3D Open Luxury View (45°)
Hardcover wrap sleeve with magnetic snap + 4-sided rigid base tray + black velvet EVA foam
Want to see how book-style boxes are structured and assembled?
Explore our complete guide with 3D diagrams, 4-panel sleeve dielines, and custom fitments.
